Box Culverts

Home / Products & Services

  • Download Box Culvert Brochure
    Box Culvert Brochure

    Download

  • Download Box Culvert Installation Guide
    Box Culvert Installation Guide

    Download

  • Download Drainage and Water Management
    Drainage and Water Management

    Download

Alex Kirkham
Great Britain - Sales Manager- Box Culverts, Headwalls and Multi-purpose Chambers
  • akirkham@fpmccann.co.uk
  • +44(0)1335 362941
The proven strength and performance characteristics of precast concrete box culverts, together with their excellent service life, make them ideal for a wide variety of civil engineering and construction applications.

Concrete culvert sections are manufactured in a variety of internal profiles and sizes and offer exceptional versatility in the uses to which they can be applied.

Unlike other materials such as steel, precast concrete box culverts do not require additional treatments to prolong their life or improve performance. The concrete surface will not rust and the smooth internal finish of the box culvert ensures an optimum flow of water through the concrete structure.

Precast concrete box culverts fulfil the current design life requirements for buried structures. They require minimum maintenance and provide many years of service, therefore making them the most cost-effective means of diverting watercourses. Furthermore, they are especially practical with the ever-present risk of corrosive elements in the water or soil.

Benefits of using precast concrete Box Culverts include:

Structural strength and long-life performance

This durable system meets the design life requirements for buried structures,  and therefore, requires minimum maintenance.

Ease of installation

Easy to position in shallow or deep fill installations.

Flexible sizes and internal features

Customers can buy in a range of sizes and accommodate features such as dry weather flow channels, mammal ledges, and dual cell configuration units, plus tapered and skewed units if required.

Additional Features

Customers can add end walls, access points, vent holes, inlets, outlets, rungs, angles and splayed ends to any run of the concrete culvert. Starter bars and sockets can also be added to facilitate any additional casting on-site required as part of the finished work.

Box Culvert Applications:
  • Diverting watercourse
  • Attenuation and storage tanks
  • Watercourse diversion
  • Open channels
  • Road crossings
  • Pedestrian and vehicle subways
  • Access shafts
  • Service tunnels and ducts
  • Sea Outfalls
  • Conveyor protection

Typical Concrete Culvert

Units are available in internal span sizes from 1000mm to 6000mm and internal heights from 500mm to 3600mm, with unit lengths to a maximum of 2000mm dependent on final mould configuration.FP McCann precast concrete typical concrete culvert diagram Mammal Ledges

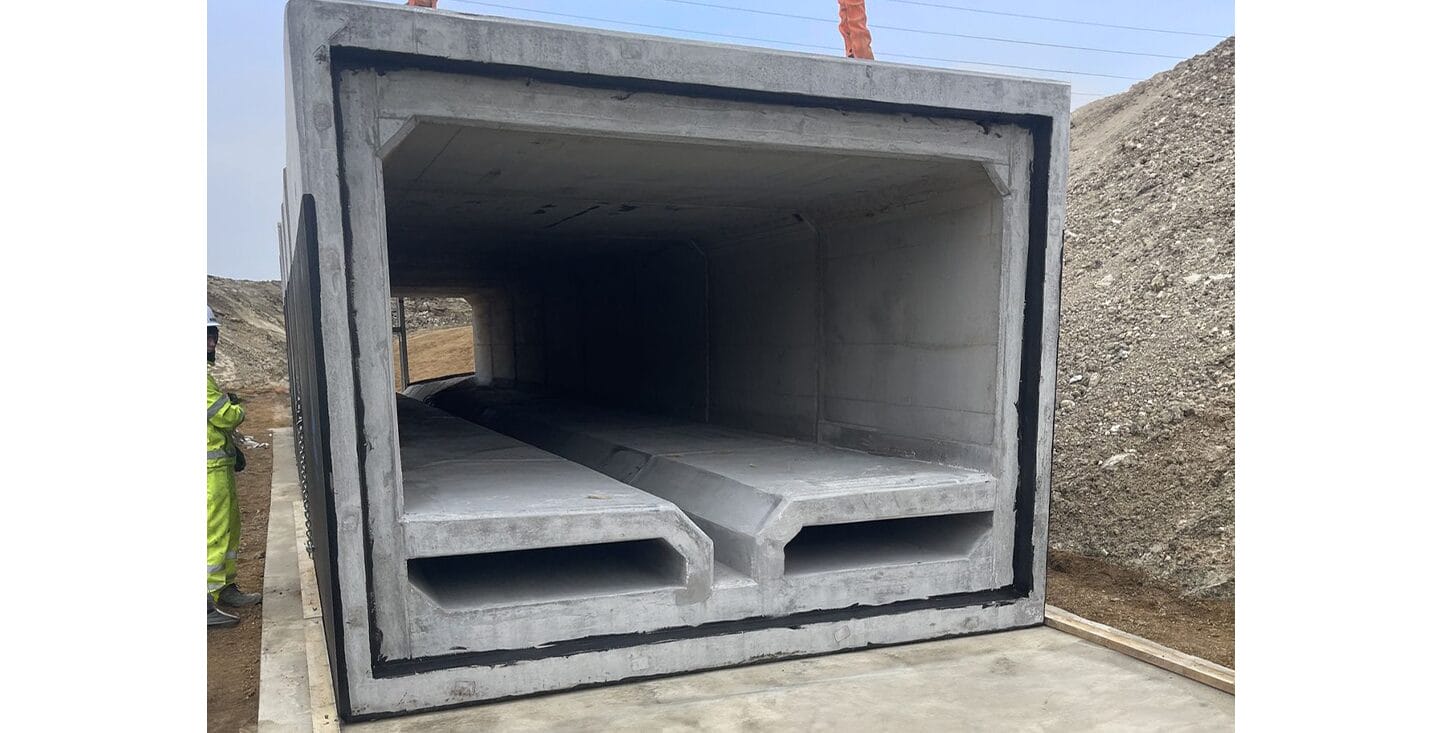

Cast in mammal ledges allows access through the culvert to wildlife without the requirement for extra site provisions.FP McCann's concrete culvert mammal ledge diagram Channels

Half-round (or equivalent) channels can be cast into the floor of the units at any position with a choice of equivalent half-round diameters.FP McCann box culvert half round channel diagram Dual Cell

Used to facilitate separate water passage through the structure.FP McCann's precast concrete dual cell culvertBenching

Combined with either a channel or cast as a “vee”, benching improves self-cleansing flow rates.FP McCann's benching box culvert Specials

Bespoke units accommodating a variety of features can be manufactured to the customers’ design requirements.FP McCann's bespoke box culverts

INTERNAL DIMENSIONS

(Based on flat invert culvert units)
Key: Flow area m2 / Discharge rate m3/sec

Box_Culverts_Dimensions

Please note: These figures are a guide only and will be dependent on the mould configuration used in manufacture. Discharge rates are calculated using
Colebrooke-White equation for a fully wetted perimeter under uniform flow conditions and assuming a flat invert culvert unit. The assumed laying gradient (s) is
1:1000 with a roughness co-efficient (k) of 0.3. Where different values maybe required, please contact the office number below to discuss your specific requirements.
The hydraulic design of a box culvert should always be undertaken by the overall scheme designer, as they are able to take into account the upstream and
downstream conditions and other parameters such as freeboard, restriction due to silt build-up and need for the culvert to be free flowing at all times. Due to the lack
of this information, FP McCann will only give discharge rates for an idealised culvert, which may not suit the local conditions.

FP McCann's Box Culverts being installed by ECL Civil Engineering on The Wixams development, Bedfordshire
Precast Concrete Box Culverts
Box Culverts FP McCann
FP McCann Box Culverts

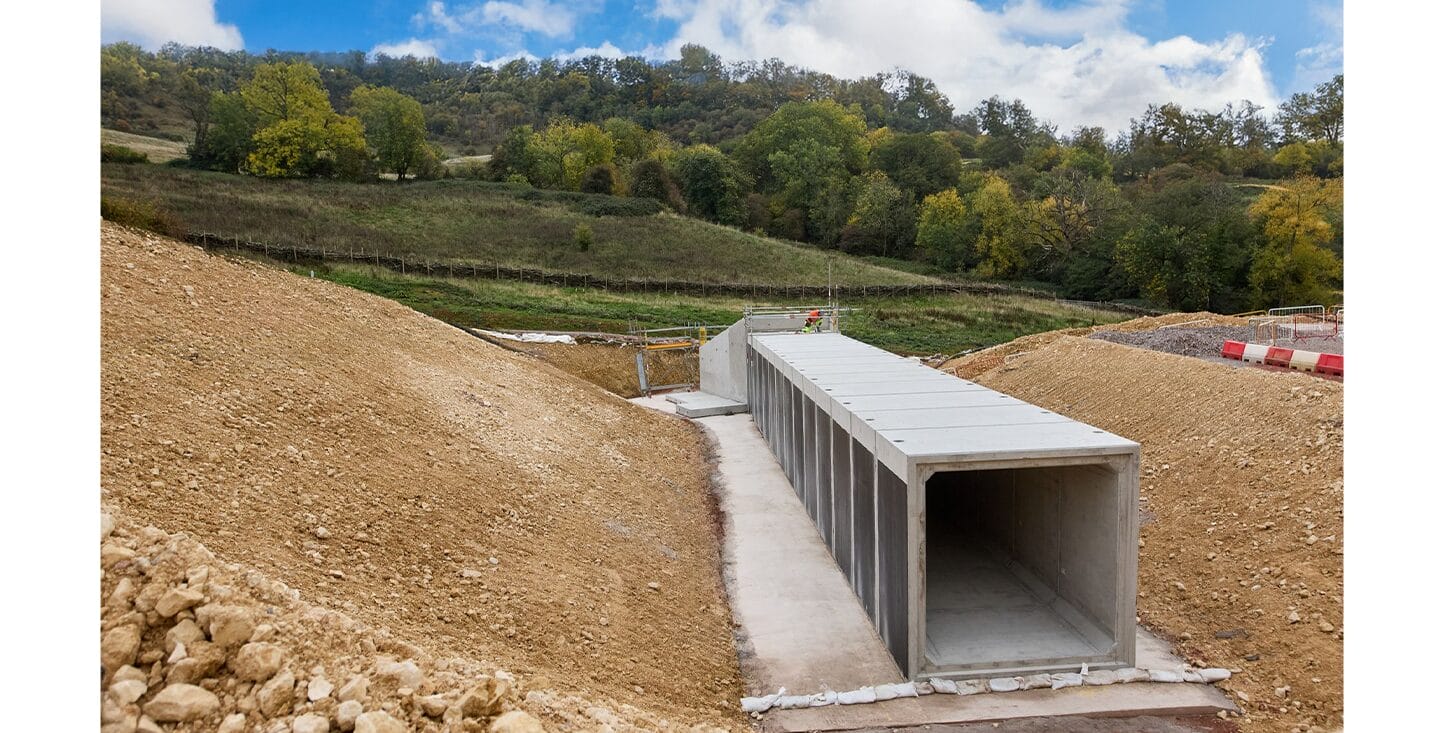

Aerial shot of FP McCann's precast concrete box culvert on site at Duntanlich Mine
Box Culverts from FP McCann
FP McCann's Box Culvert Opening
FP McCann Box Culverts

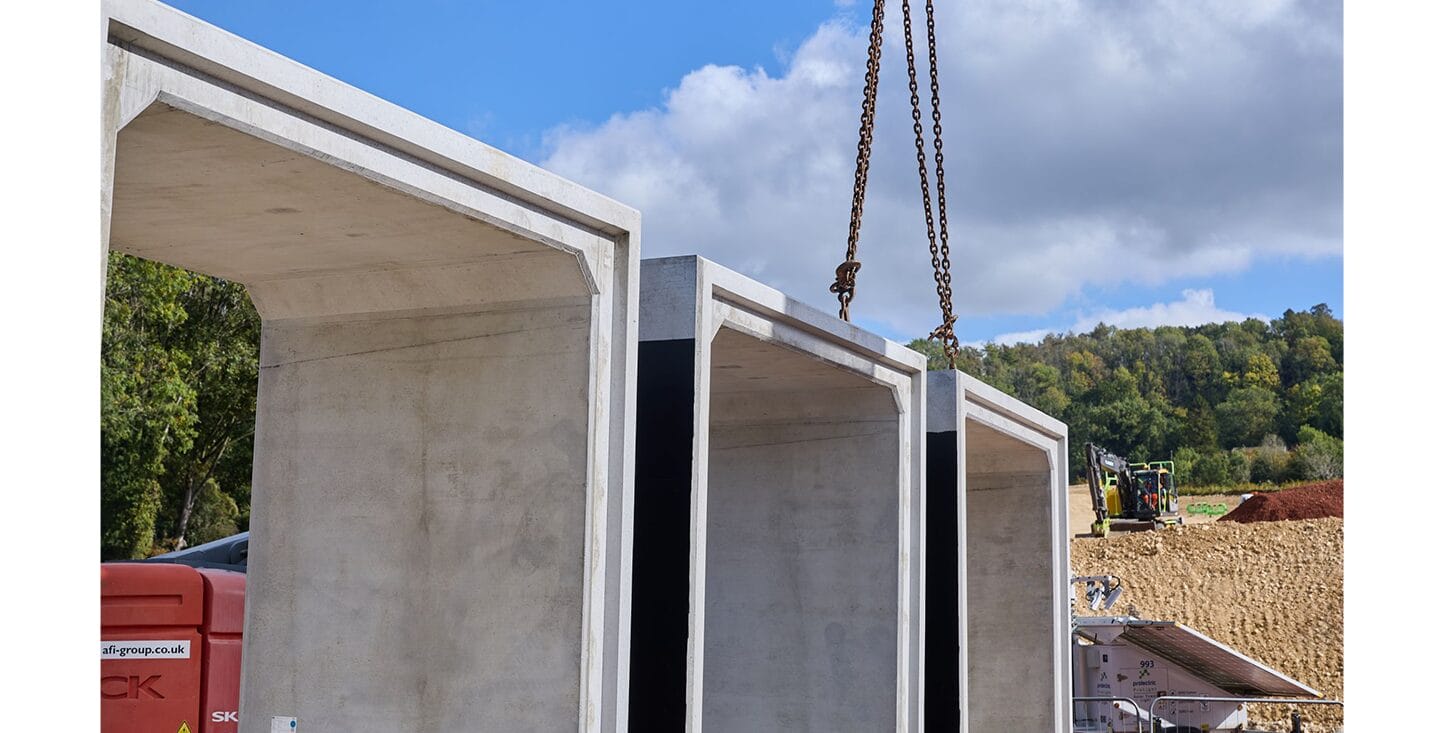

FP McCann's precast concrete culvert section being craned of lorry

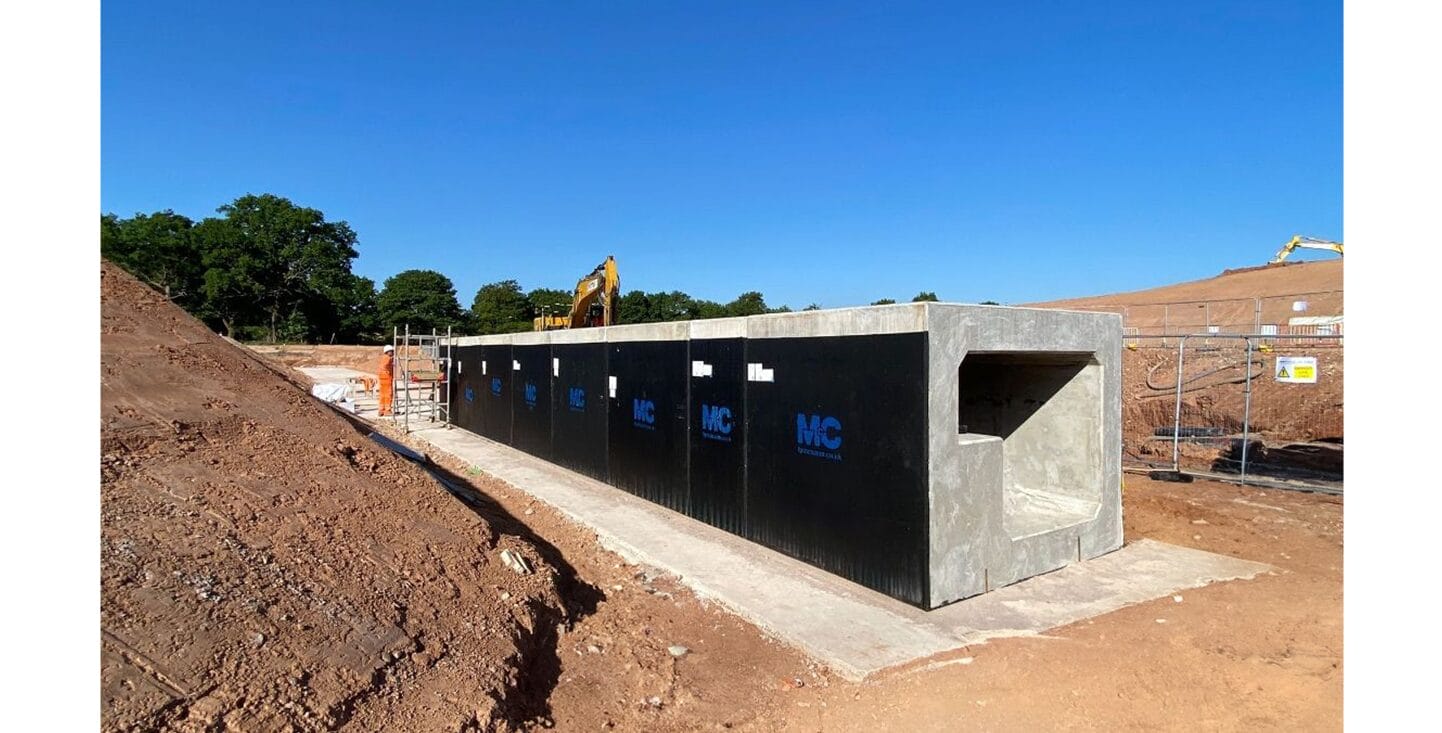

FP McCann's precast box Culverts installed by ECL Civil Engineering at The Wixams site
