ThruBeam® Composite Trench Covers
GET IN TOUCH
Gary Donnelly – Scotland
07989 348045 gdonnelly@fpmccann.co.uk
Katie McGorty – England & Wales
07976 921585 kmcgorty@fpmccann.co.uk
Michael Hassan – NI/ROI
Heavy-Duty GRP Trench Covers for Infrastructure, Utilities & Data Centres

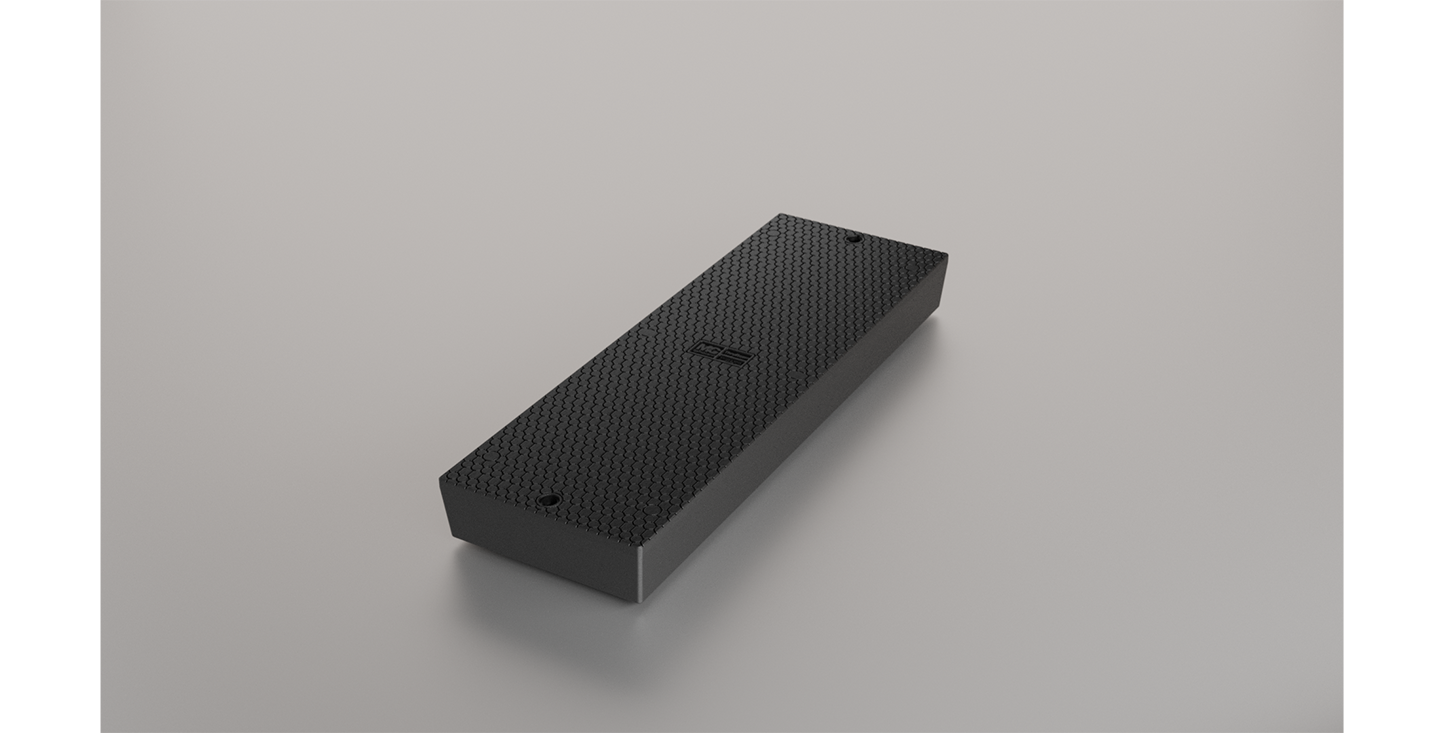

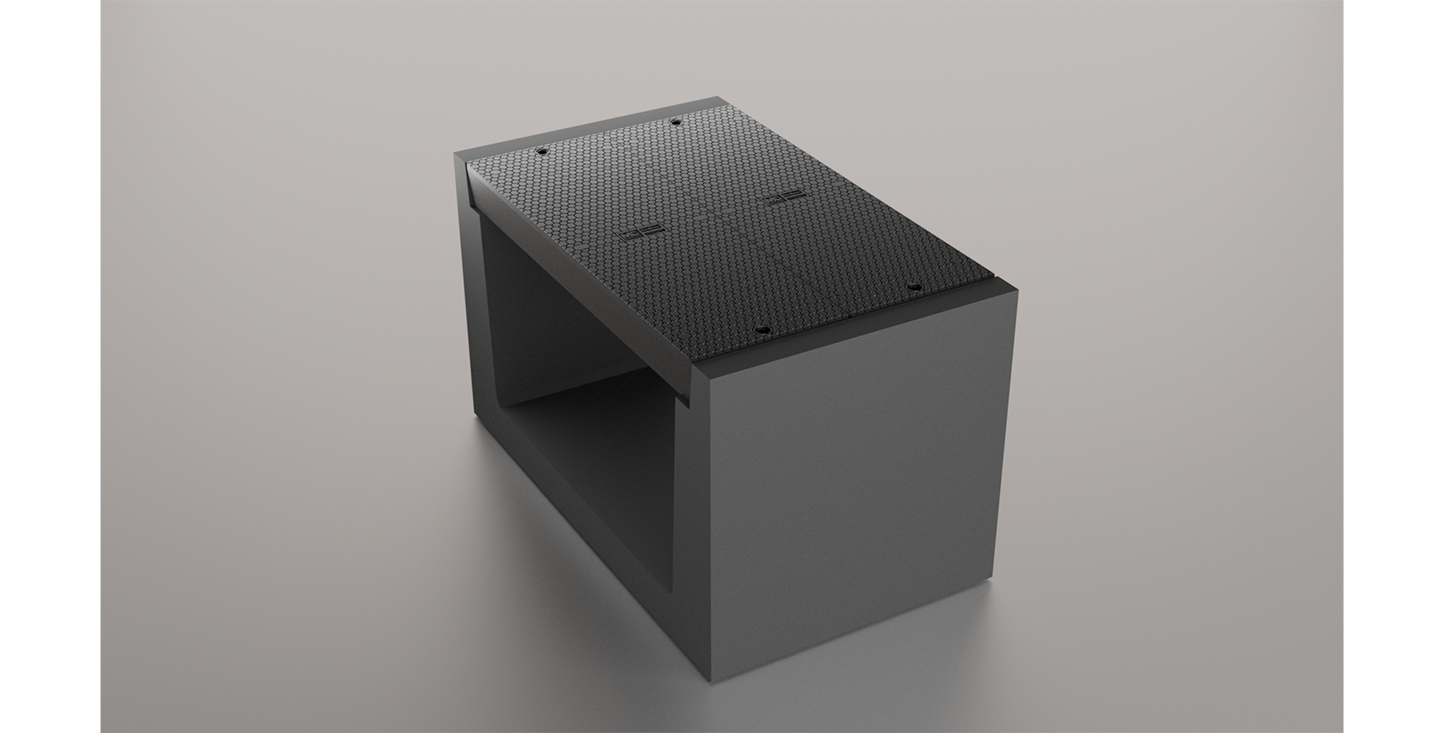

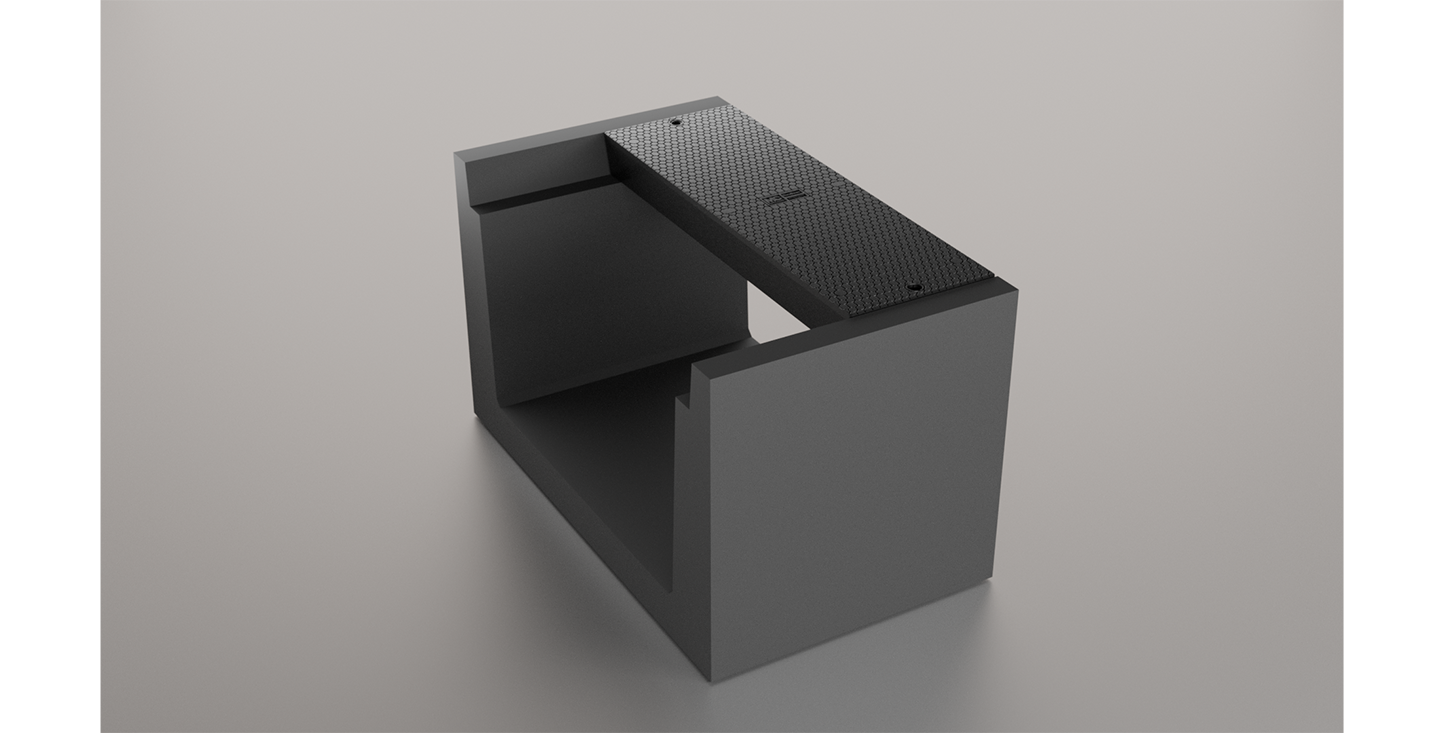

ThruBeam D400 Composite Trench Covers are high-performance GRP access covers engineered as a lightweight alternative to traditional steel and concrete trench covers. Designed for demanding infrastructure environments, they deliver D400 load capacity, excellent slip resistance, corrosion resistance, non-conductive properties and reduced manual handling requirements.
WHY CHOOSE THRUBEAM D400 TRENCH COVERS?
• D400 load rating suitable for heavy-duty applications
• Lightweight GRP construction reduces manual handling risks
• Corrosion-resistant and chemical-resistant materials
• Non-conductive for electrical and telecommunications environments
• Non-sparking construction for hazardous locations
• High slip resistance with PSRV 60 surface performance
• Locking and security plug options available
PRODUCT APPLICATIONS
- Data Centres
- Utility Infrastructure
- Electrical & Telecommunications Networks
- Industrial Facilities
- Rail & Transportation Projects
- Commercial Developments
- Petrochemical Facilities
| Property | DT935 | DT1214 | DT1495 |
|---|---|---|---|
| Load Rating | D400 | D400 | D400 |
| Clear Opening | 800 x 498 | 1100 x 498 | 1370 x 498 |
| External Dimensions | 945 x 498 x 100 | 1214 x 498 x 130 | 1495 x 498 x 150 |
| Slip Resistance | PTV 44 (wet) | PTV 44 (wet) | PTV 44 (wet) |
| Estimated Weight | 34 kg | 48 kg | 61 kg |
| Lifting points | 2 | 2 | 2 |
MATERIAL & PERFORMANCE
Composite GRP construction, corrosion resistance, non-conductive, non-sparking, security locking options and embedded aggregate finish.
SUSTAINABILITY
A1-A3 Production Stage Carbon Impact: 4.59 kg CO2e/kg.

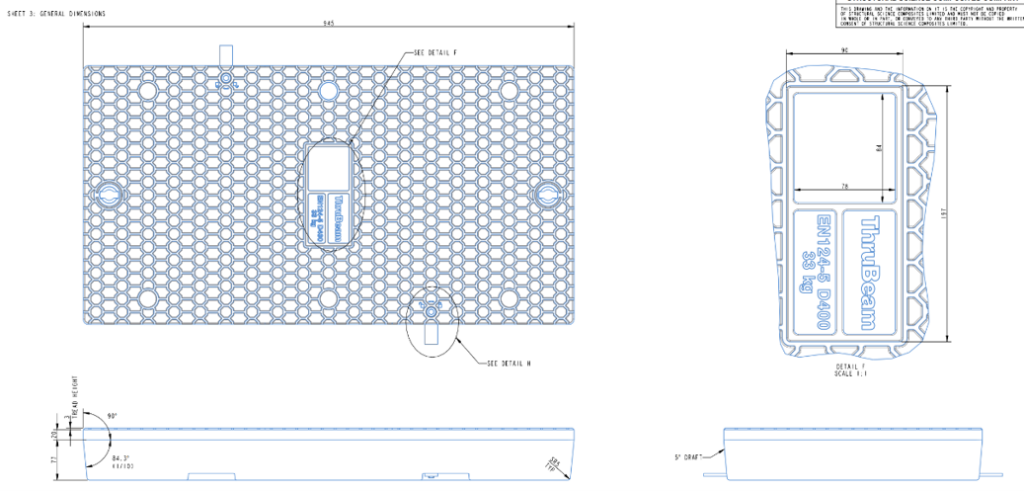

Engineering drawing
Figure A1. ThruBeam D400 trench cover engineering drawing from attached source image.
