Gemini Interlocking Concrete Roof Tiles
The Gemini roof tile offers the classic look of traditional double cambered plain tiles combined with the efficiency of a single-lap interlocking design.
Details
- Size – 270 x 337mm
- Weight – 2.8kg
- Tiles Per Pallet – 336
- Tiles Per Band – 7
- Weight Per Pallet – 0.95 t
Technical Information
- Minimum Headlap – 75mm-80mm (dependent on pitch)
- Minimum Pitch – 22.5° (80mm Headlap) 30° (75mm Headlap)
- Cover Width – 316mm
- Nail Size – 45mm x 3.35mm Aluminium Alloy
- Covering Capacity – 80mm headlap – 16.66 Tiles kg/m² (Tiles /m²) 95mm headlap – 18.08Tiles kg/m²
COLOUR SWATCHES

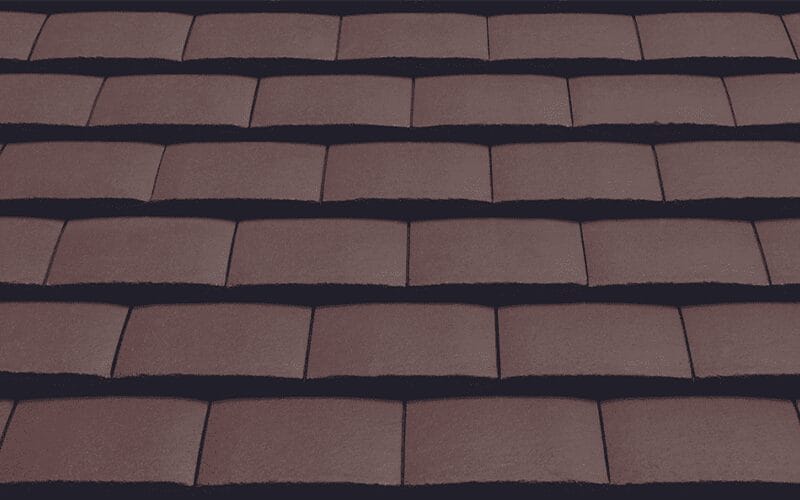

Brown

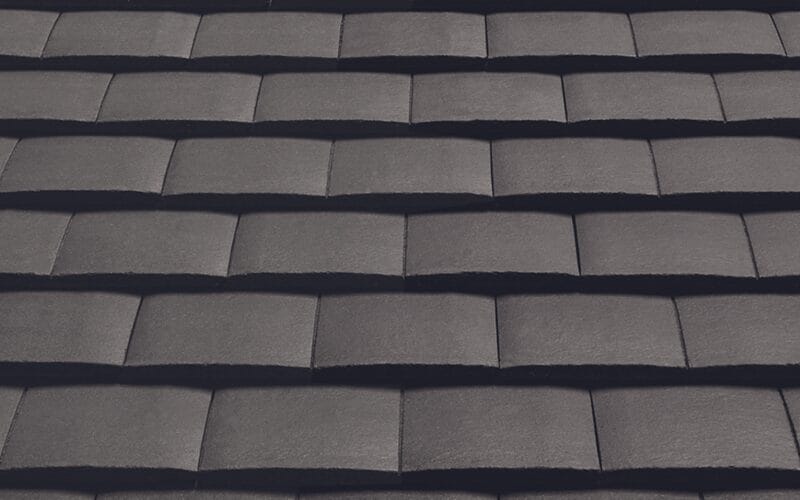

Grey

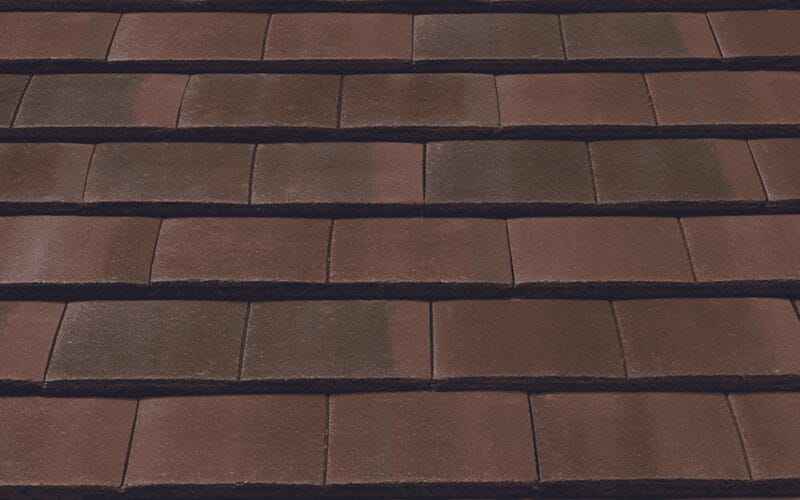

Mixed Russet

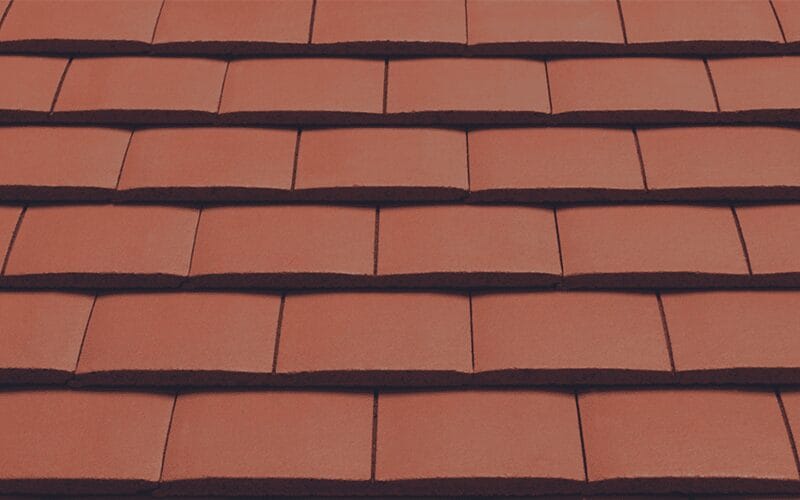

Red

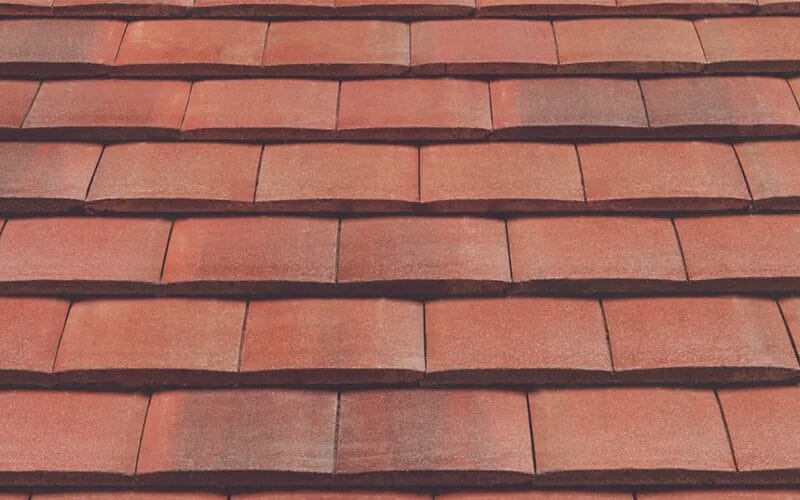

Sunrise
The FP McCann Full Roof Offering is covered entirely by our 15-year guarantee and gives definitive certainty that it can be specified and installed with utmost confidence.
Gemini Interlocking Concrete Roof Tiles from FP McCann
This innovative solution has been a market leader for over 30 years, delivering exceptional performance and aesthetic appeal.
Why Choose Gemini Roof Tiles?
- Authentic Appearance: Looks like traditional plain tiles when laid.
- Lower Pitch Capability: Suitable for roof pitches as low as 22.5° (plain tiles require 35°).
- Material & Labour Savings: Only 16.2 tiles per m², reducing installation time and cost.
- Complete System: Includes plain tiles and angles for vertical installation.
- Durability & Compliance: Conforms to BS EN 490 and UKCA/CE marked.
- Sustainability: Environmental Product Declaration (EPD) available.
- Accessories: Full range of maintenance-free, mechanically fixed accessories and concrete fittings.
Recognised with Millennium Product status and the Queen’s Award for Enterprise: Innovation, Gemini delivers exceptional performance, cost savings, and aesthetic appeal.
