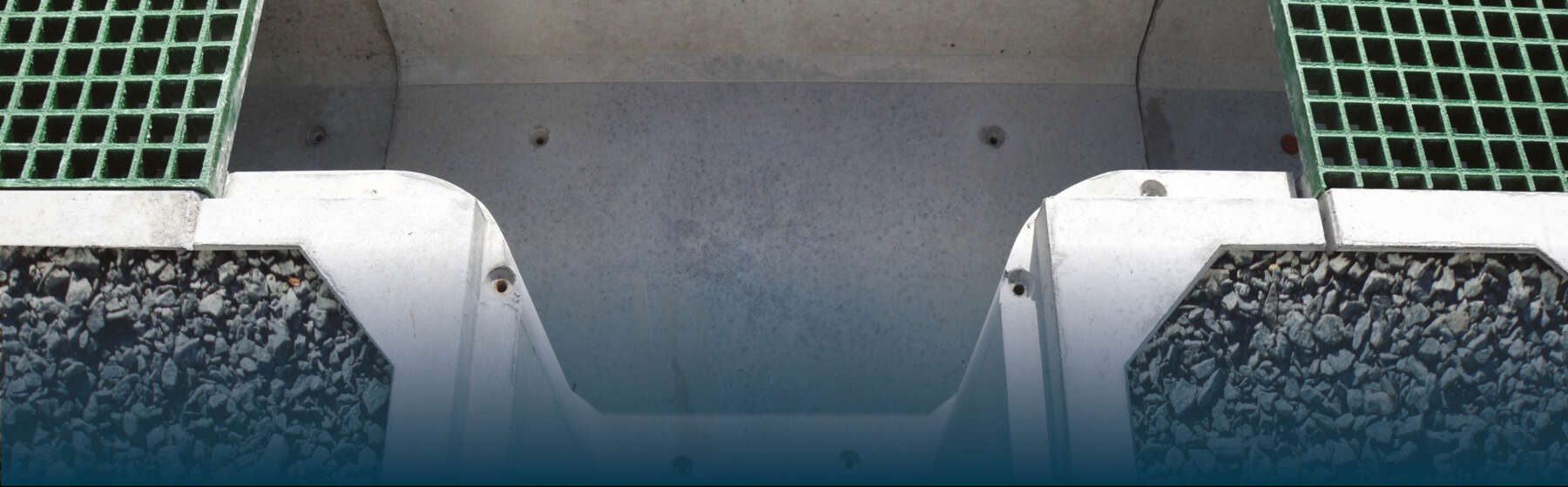

CABLE TROUGHS – CORNER, ANGLED & TEE UNITS

GET IN TOUCH

Shannon Coffey – Great Britain

01455 290780      scoffey@fpmccann.co.uk

Gary Donnelly – Scotland

07989 348045     gdonnelly@fpmccann.co.uk

Units to form changes in troughing direction are available in some sizes, maybe cast in-situ or formed from standard units on site. However, care should be taken that such features are suitable for the anticipated trafficking.

Bespoke designs to suit particular conditions can be provided. Corner, tee and specific angled cable trough units are usually available ex-stock. The units incorporate galvanised steel angles to support lids where necessary and have curved inner corners to allow ease of cable laying.

Corner Units

FP_McCann_Rail_Power_Infrastructure_Cable_Ducting-Cornert-Units_0-1

*Corner Unit Trough Dimensions

Cable-troughs-pi-Table

*All dimensions contained within this table are nominal and do not take into account manufacturing tolerances.
† maximum self-weight = nominal self + 5%, which should be used to size lifting equipment. Additional sizes are available upon request.

Tee Units

Picture-3-FP_McCann_Rail_Power_Infrastructure_Cable_Ducting-Tee-Units_0-1

*Tee Unit Trough Dimensions

tee-units-table-2

*All dimensions contained within this table are nominal and do not take into account manufacturing tolerances.
† maximum self-weight = nominal self + 5%, which should be used to size lifting equipment. Additional sizes are available upon request.

Angled Units

Typical 22.5º angled units (left hand and right hand)

FP_McCann_Rail_Power_Infrastructure_Cable_Ducting-Angled-units

*Angled Unit Trough Dimensions

trough-deimensions-table-2

*All dimensions contained within this table are nominal and do not take into account manufacturing tolerances.

† maximum self-weight = nominal self + 5%, which should be used to size lifting equipment. Additional sizes are available upon request.

Other angled units, including 11.25º, 15º and 30º are available on request
